Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person

Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person
Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person

تصویر بزرگ :  Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person

جزئیات محصول:
Place of Origin: Guangdong, China (Mainland)
نام تجاری: Zhisheng
گواهی: ISO 9001/CE/ROHS
Model Number: AS-1400D-1
پرداخت:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: T/T, Western Union
Supply Ability: 200 Set/Sets per Month

Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person

شرح
Clean room: 100 class Blowing side: Two side
Material: Outside spray coating inside stainless steel Shower time: 0-99s
Wind speed: 22-25m/s After-sales Service Provided: Engineers available to service machinery overseas
برجسته:

air shower room

,

air shower system



Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person​



Clean Room Air Shower Characteristics:



This is a kind of local purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state. Shower way: single-side shower, double-side shower, three-side shower, top shower



Clean Room Air Shower Features:



1. Photoelectric control, automatic shower.



2. Circulated air design keeps shower area clean in non-shower state.



3. Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.



4. Made as negative pressure and anti-exploding air shower according to users’ requirement.



5. Equipped with the device to remove static.



6. Carry on air brake, cushion type and other particular design, manufacturing.



Features:



Product type Air shower for clean room
Material for casing 1.2mm cold rolled steel with powder coated /stainless steel (SUS#201 or SUS#304)
Material for doors Stainless steel / aluminum alloy / powder coated steel
Nozzles SUS#304
Door leaf Single leaf / double-leaf
Door type Manual swing door/ Auto sliding door/ High speed shutter door
Blowing way Top-side blowing, single-side blowing, two-side blowing or three-side blowing
Control system English intelligent control panel with human voice (If client requrie control by PLC, it is also ok)
Locks Electric mortise lock or Electric magnetic lock
HEPA filter efficinecy: H13 / H14
Pre filter G3 / G4
Light Philipines brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 22-25m/s above
Power supply 380V/50HZ/3PH or 220V/50HZ/1PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



Standar size and specificaton:



Model Air shower Cargo Air shower
AS-1200D-1 AS-1400D-1 AS-1400D-1.5 AS-1400D-2 CAS-1700T-2 (2 Modules) CAS-1700T-4 (4 Modules)
Ex size WxDxH (MM) 1200x1000x 2050 1400x1000x 2050 1400x1500x 2050 1400x2000x 2050 1800x2000x2050 1800x4000x 2050
In size WxDxH (MM) 800x900x 1920 800x900x 1920 800x1400x 1920 800x1900x 1920 1200x1900x 1920 1200x3900x 1920
Doors Swing door/sliding door/shutter door Door frame: SS/ALU
Suitable person 1 1 1-2 2-3 Cart
Nozzles 12(two side) 12(two sides) 18(two sides) 24(two sides) 32(3- side) 64(3- side)
Fan #4250x1 set #4195 x 2 sets #4195x2sets #4250x2sets #4195x4sets #4195x8sets
Power(W) 1000W 850W 850W 2000W 1700W 3400W
HEPA filter 610x610x69 1pcs 610x610x69 2pcs 610x610x69 2pcs 915x610x69 2 pcs 610x610x69 4pcs 610x610x69 8pcs
Nozzle ф 25 or 32mm
Voltage 380V/50Hz/3Ph; 220V/50Hz/1Ph
Control system IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked.



Note: Customer's size and specification can be acceptable.

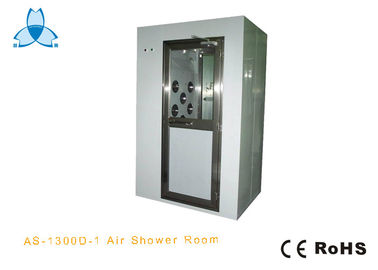

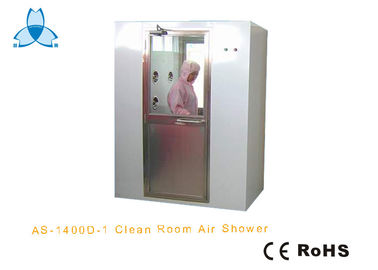

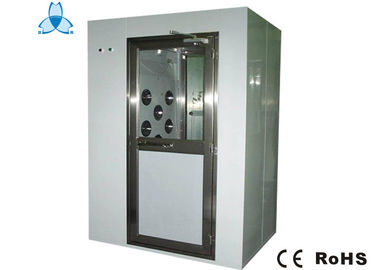

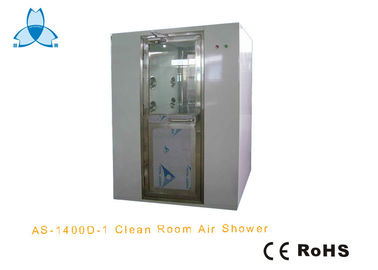

Air Shower Pictures:

Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person 0



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



ZHISHENG  Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
