|Filtration Grade:||Hepa Filter||Efficiency:||H13 @0.3um|
fan powered hepa filter,
ffu fan filter

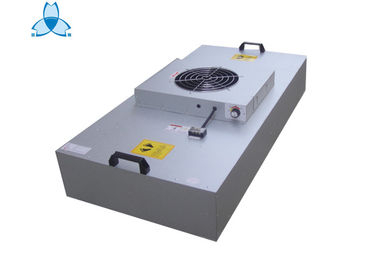

Class 100 Cleaniness Mini FFU With Low Noise For Ultra Clean Space
Hepa Fan Unit
which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.
FFU’s are commonly used in the construction of Class 100 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc…
Standard Size and Specification
|Size for cabinet(mm)||610x610x240||915x610x240||1170x570x240||1220x610x240|
|Material||Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304|
|Average Air flow(m3/h)||600||900||1080||1200|
|Air velocity(Tested under filter300mm)||0.35-0.6m/s|
|Optional||Control panel, Remote control, Pre filter, Pressure gauge|
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
