|External Material:||stainless steel||Dimension:||800*660*690mm|
|Internal Material:||Stainless Steel||Door Lock:||Electronical|
|Application:||small Area||Suitable:||Big Goods|
cleanroom pass through chambers,
dynamic pass box

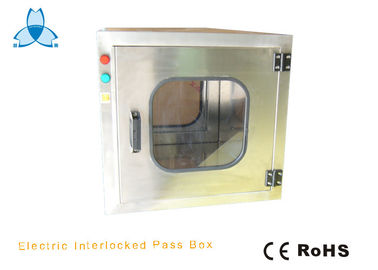

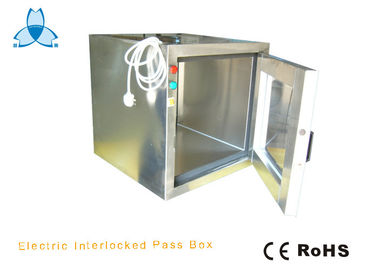

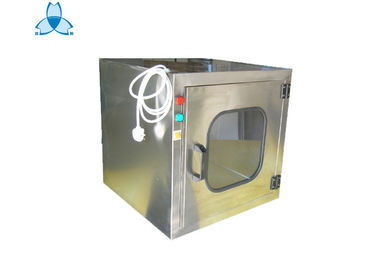

Electric Interlocked Small Area Air Shower Pass Box Used For Hospital Operating Room
Clean pass boxes use for micro-electronics, laboratory, national defense, precise instrument and
gauges, bio-pharmaceuticals, opto-electronics field.
Static pass box equipment, fabricated with powder coated 304 / 316 grades stainless steel and high
quality components and are capable of eradicating pollutants completely from the air. These static pass
boxes are installed in manufacturing areas and filter the incoming air in order to keep the air free from
dust and other contaminants. With UV light along with hour meter, Fluorescent light, buzzer indicator to
know the material is kept inside and indicating lamp, these static pass boxes provide excellent working
performance in the clean room unit.
1, Mechanical or electronic interlocking to ensure that the two doors will not open simultaneously.
2, Professional and fast design capabilities.
It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.
|External dimensions (W x D x H)||820x560x1300||920x660x1400||920x660x1750|
|Size for working area ((W x D x H)||500x500x600||600x600x600||600x600x600|
|Material||Cold rollled steel with powder coated for outside, stainless steel for inside and base|
|Lock type||mechanical interlock|
|Windows||Clear Acrylic sheet|
|External dimensions (W x D x H)||685x460x590||785x660x690||985x660x890|
|Size for working area ((W x D x H)||500x400x500||600x600x600||800x800x600|
|Material||Cold rollled steel with powder coated for outside, stainless steel for base|
|Windows||Clear Acrylic sheet|
we can offer special size and requirement as per our clients.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Why you choose ZHISHENG Company ?
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
