تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده

تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده
تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده

تصویر بزرگ :  تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده

جزئیات محصول:
Place of Origin: Guangdong, China (Mainland)
نام تجاری: Zhisheng
گواهی: ISO 9001/CE/ROHS
Model Number: AS-1890D-5-AD
پرداخت:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: 10-15 days after receive prepayment
Payment Terms: T/T, Western Union
Supply Ability: 200 Set/Sets per Month

تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده

شرح
وضعیت: جدید ابعاد EX: W3780 * D11550 * H2150MM
درب: درهای کشویی تک برگ سرعت باد: 22-25 متر بر ثانیه
کلاس: 100 کلاس
برجسته:

dust free room

,

air shower cleanroom



90 Degree Turn Personnel Air Shower Tunnels - Clean Room Equipments , Painted Steel Material



Description:



We offer a wide range of Air Shower which is recommended for superior quality and efficiency.



These products are specially designed to supply concentrated Class 100 air flow.



The contamination sticking to the clothing surface can easily be blown off form before a man enters a clean room.



Manufactured with the latest technologies, our air shower is capable of passing the pressurized air through adjustable nozzles at a velocity of 7500 approx. feet per minute.



These nozzles are installed in side walls and ceiling. In addition to this, the contaminated is allowed to pass down through aluminum grated hollow walls and floor.



Our air shower is a fully automatic system and has the electromagnetic door interlocking system which ensures to open the door one at a time.

Air Shower Specifications

Filter: Twelve inch HEPA (High Efficiency Particulate Air) type, PSL challenged, zero probed. Minimum efficiency of 99.99% at .3 microns.



Pre-filter: One inch bonded polyfiber media minimizes surface-loading. Low wall return to HEPA filter atop unit. Quick release grille.



Blowing type: single-side blowing, double-side blowing, three-side blowing.



Operation Instruction



1.Put air shower on the correct location, connect the power wires of air shower with the power wires,



There are FIVE lines: 3*Live line, 1*Null line and 1*Earth line. The power supply is AC380V/50HZ/3 phases.



2. In order to make sure air shower to work normally and the cleanliness of workshop, please kindly use air shower according to the following correct method.



2.1 Please check if there are any people in air shower before you enter it. When air shower is working entrance door and exit door are electronic interlocked, it is forbidden to open the door at this moment.



2.2 Put hand toward to Open switch, the entrance sliding door will open , enter air shower, then entrance sliding door will be close automatically, photoelectric sensor is reacted by people or goods, blower fan will be



blowing automatically (The air shower time is set 15seconds at factory, it is forbidden to change the air shower time during blowing), after blowing, exit sliding door open automatically, go out air shower,



then exit sliding door will be close automatically.



Attentions:



1. The power of this equipment requires 380V/50HZ/3PH. If the airflow is very low when using the first time, the reason is fan reversal, you should exchange the phase.



This equipment is electronic interlocked, while one door in open state, or air shower time, please don’t open the other doors, or the electronic lock will be broken.



2. The terminals on the circuit board, L is the connection of Live line, N is the connection of Null line, PE is the connection of Earth Line.



3. In order to make sure the efficiency of blowing and cleanliness, in general, primary filters is changed once half year and HEPA filter a year.



Parameter:



Product type Straight Through Painted Steel Clean Room Air Shower Tunnel With Stainless Steel 304 Doors
Material for casing T=1.2MM Power coated steel for outside, SS304 for inside
Material for doors Stainless steel 304
Nozzles Stainles steel
Door leaf single leaf
Door type Sliding doors
Blowing way 3-side blowing
Control system

English intelligent control panel with human voice

Locks Electric interlocked
HEPA filter efficinecy: 99.99%
Pre filter G3
Light Philips brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 25-27m/s above
Power supply 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



 Size and specificaton:



Product Straight Through Painted Steel Clean Room Air Shower Tunnel With Stainless Steel 304 Doors
Model AS-3780D-11.55-AD
External dimensions (mm) W3780*D11550*H2150MM
Internal dimensions mm W3000*D11200*H1925MM
Doors 2 sets of SS Single-leaf sliding doors
Door closer NONE
Lock  electric interlocked
Suitable  People and Goods
Nozzles 72+72=144PCS(2-side blowing)
Blower fan 16sets
Blow power(W) 6400W
Weight(kg) Appro.3200
HEPA filter size 610x610x90mm
HEPA filter qty 16 PCS
HEPA filter efficiency H13
Photolectric sensor ORMON 2 PCS
Fluorescent Lamp Philips 8x 20W
Nozzle diameter 32mm
Air shower time 0-99 s Adjustable
Spurt wind speed 22-25m/s
Power Supply AC380V/50Hz/3Ph
Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

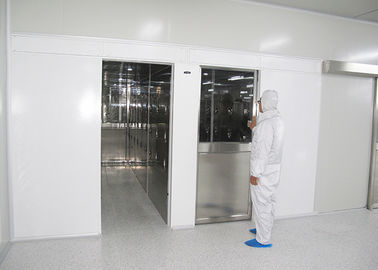

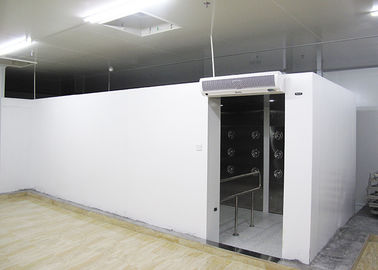

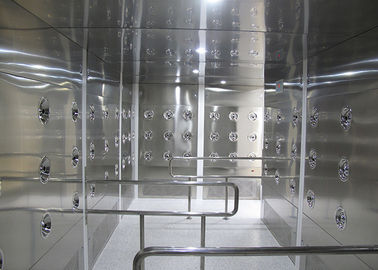

Pictures Of Air Shower Tunnels:



تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده 0تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده 1



Drawing of Air Shower Tunnel



تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده 2تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده 3تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده 4تونل دوش هوا با 90 درجه چرخش ، تجهیزات اتاق تمیز با مواد فلزی رنگ شده 5



Can custom air showers be manufactured?



We offers both standard and custom air showers. Please contact us for more information.



Is it possible to alter the settings on the air shower?



Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
