|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||100 pcs|
|Delivery Time:||about 15 days upon receipt of deposit|
|Payment Terms:||Western Union, MoneyGram, T/T|
|Supply Ability:||1000 pieces|
|Color:||White||Type:||Pocket - Type|
bag filter systems,
hvac hepa filter

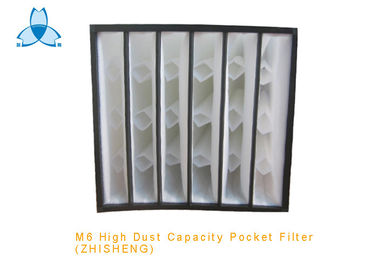

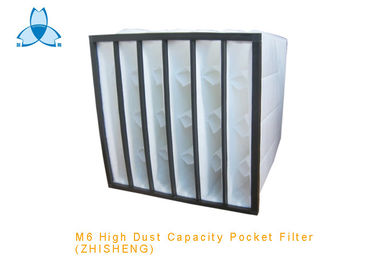

M6 High Dust Capacity Self Supporting Pocket Air Filter For Gas Turbines
-For air intake filtration of turbo machines and gas turbines.
Self-supported pocket filters are manufactured in plastic frame version and synthetic fiber.
The air intake of this pocket filter is equipped with aerodynamic stream ledges to provide the lowest possible differential pressure.
Each single pocket of the pocket filters are made of progressive structured synthetic media, which is leakage free welded and in self supporting stability.
On the one hand this conditional on manufacturing shape stability results from tubular separators, on the on the other hand this is further supported by an additional reinforcement of the media on the clean air side of each single pocket.
By this the pocket filter is able to keep its shape also at variation in pressure or at shut down of the turbine.
Filter class: G4, M5, M6 according to EN 799
Plastic frame, no corrosion.
Absolute stability at 100% relative humidity
Max operating temperature up to 80 ℃
Additional reinforcement for extreme load
Size and specification
|Type of pocket filter||ZS-GT-G4||ZS-GT-M5||ZS-GT-M6|
|Size (W x H x D)||592x592x600mm||592x592x600mm||592x592x600mm|
|Number of pockets||6||6||6|
|Average gravimetric arrestance grade(%)||>90||>90||>95|
|Initial pressure dorp(pa)||35||45||50|
Heat bonded spacers stabilize pocket shape:
Average Arrestance Am in%
|Coarse dust filters||G3||80≤Am<90|
Roll Filter media
Filter mats and rolls
|Fine dust filters||F5||40≤Em<60|
Filter mats and rolls
|Filter class(EN1822)||Extraction efficiency to EN 1822 in%||Product description|
|High efficiency filters(HEPA and UPLA)||H10||>85||Mini-pleat filters Compact fine dust filters|
|H11||>95||Mini-pleat filters Compact fine dust filters|
Mini-pleat filters Compact fine dust filters
