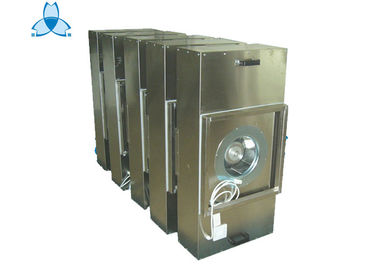

Galvalume Clean Room Fan Filter Units With Multi - Level Protective Devices

Galvalume Clean Room Fan Filter Units With Multi - Level Protective Devices

MOQ: 10 sets
standard packaging: plywood case
Delivery period: about 15 days upon receipt of deposit
Supply Capacity: 500set per month
Detail Information
محل منبع
Guangdong, China (Mainland)
نام تجاری
Zhisheng
گواهی
ISO9001
شماره مدل
ZS-FFU1170
Size:
W1170x D570 x H240mm
Material:
Galvalume
Noise:
≤54dBA
Air velocity:
0.45m/s ±20%
Hepa filter:
W1170 x D570 x H69mm
HEPA filter efficiency:
H13
مقدار حداقل تعداد سفارش:
10 sets
جزئیات بسته بندی:
plywood case
زمان تحویل:
about 15 days upon receipt of deposit
قابلیت ارائه:
500set per month
High Light:

,

,

hepa filter fan

Product Description



Galvalume Fan Filter Unit (FFU) With H13 HEPA Filter For Modular Clean Rooms







Features:



*Flexible design to suit various needs
we are equipped with great capabilities of customized design to suit various needs. External size can be altered to suit various type of GRID. Also,we provide professional solutions in respond to changes of external material case, special power supply, or changes of fan configuration



*Multi-level protective devices
FFU is equipped wuth over-current relay,motor protective device, fault indicator and fault signal circuit. Thermal protector, fuse and motor breaker and such can be applied upon request.



Standard Size and Specification



Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for cabinet(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
Average Air flow(m3/h) 600 900 1080 1200
Air velocity(Tested under filter300mm) 0.35-0.6m/s
ESP 80-120pa
HEPA filter Size(mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13 @0.3um
Pressure Drop ≤220pa
Fan(motor) Power AC 220V/50Hz;AC110V/60Hz
Noise(dB) 52 52 52 53
Optional Control panel, Remote control, Pre filter, Pressure gauge
Weight(KG) 22 24 28 32



Drawing:

Galvalume Clean Room Fan Filter Units With Multi - Level Protective Devices 0







Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
