Construction Building Return Air Louver Water Resistant For Air Conditioner

نام تجاری: Zhisheng
شماره مدل: ZS-MH
مقدار: 50 pieces
زمان تحویل: about 15 days upon receipt of deposit
جزئیات اطلاعات
Place of Origin:
Guangdong, China (Mainland)
گواهی:
ISO9001
Material:
aluminum alloy for base
Application:
Building
Customized Color:
yes
Function:
Return Air Ventilation
Installation:
Ceilling
Material thickness:
0.8mm
Packaging Details:
plywood case
Supply Ability:
1000 pieces
برجسته کردن:

adjustable air vent,commercial air vent deflector

,

commercial air vent deflector

توضیحات محصول

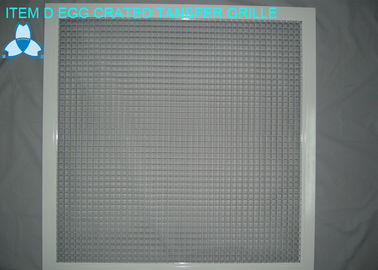

50mm Height Item d Egg Crated Grille Return Air Louver For Air Conditioner





Construction:

  • Frame: High quality extruded aluminum alloy profile with 30mm flange as standard.
  • Blades: Aerofoil blades from aluminum profile
  • Blades spacing: 20mm as standard
  • Filter Frame: Dia 5mm steel
  • Filter media: Aluminum mesh

Product Introduction:



Σ It is added with a frame and special door lock and hinge for easier installation and cleaning of the filter mesh.

Σ The vale can be easily open by slightly unbolting the two bolts on the valve.

Σ When pulling out the filter mesh, just push on the valve, the Spring locks at both sides would be locked automatically.

Σ This return wind inlet is usually used on the return wind inlets in guest rooms and lobbies.



Size:

  • Any size available
  • Overall face size = Neck size + 55mm

Standard size (Neck size=A):

Item Code Neck size
W x H(mm)
Face size
W x H(mm)
ZS-FBN-150 150 x 150 210 x 210
ZS-FBN-200 200 x 200 260 x260
ZS-FBN-250 250 x 250 310 x310
ZS-FBN-300 300 x 300 360 x 360
ZS-FBN-350 350 x 350 410 x410



Packing: Carton



Payment: 30% prepayment by T/T before shipment, the balance of payment before shipment.



Construction Building Return Air Louver Water Resistant For Air Conditioner 0
